Double Suction Split Case Centrifugal Pump

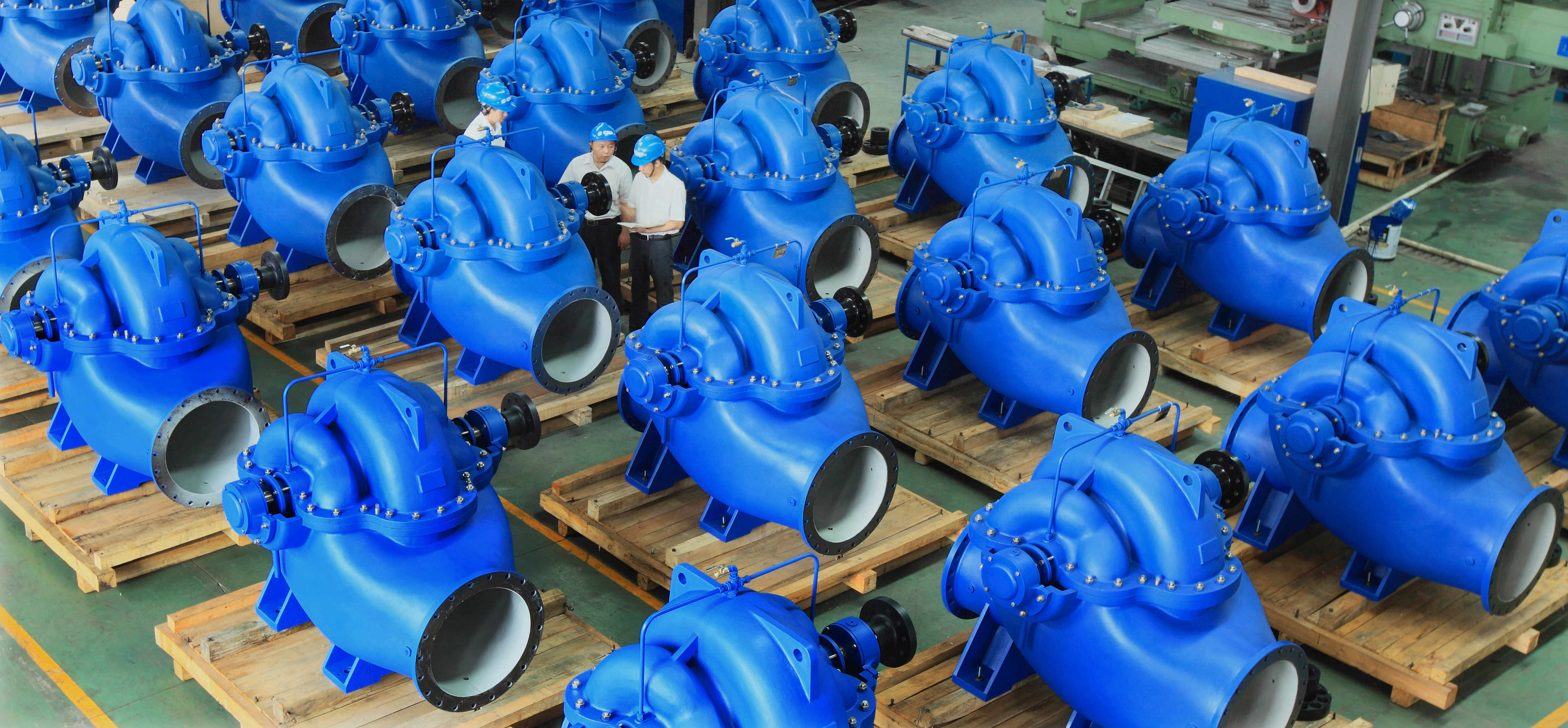

Introduction of Double Suction Split Case Centrifugal Pump
Single Stage Double Suction Centrifugal Pump is a product with wide application; used for transport no solid particles contained water or Chemical and Physics water. Its typical application mainly includes the following aspects:
1. High-rise buildings water supply and drainage, and for fire working
2. Factory and mining for distance water supply and drainage
3. Circulation water supply for production process;
4. Cooling systems of air-conditioning in hotels;
5. Domestic water supply
6. Long distance water transportation
7. Irrigation, power station, hydropower station, building industry and all kinds of water for industrial processes




Feature of Double Suction Split Case Centrifugal Pump
1. Single Stage Double Suction Centrifugal Pump with advanced design of suction performance ensures high suction lift even with large capacity.
2. Single Stage Double Suction Centrifugal Pump is high operation efficiency over a wider range of capacities.
3. Split case design permits easy disassembly, that is, inspection is simplified, it is not necessary to disturb Single Stage Double Suction Centrifugal Pump alignment and suction & discharge piping when parts replacement is necessary.
4. Single Stage Double Suction Centrifugal Pump operation with low noise and high stability ensures a comfortable environment.
5. Variable combination of materials permits wide application.
6. Drive shaft end of the double suction pump can be positioned optionally on the left or right.
7. Mechanical seal of Single Stage Double Suction Centrifugal Pump assures the reliability and longer service life of the pump.

Working Condition of Double Suction Split Case Centrifugal Pump
1. Transport the water and other liquid similar to the water in physical and chemical characteristic.
2. Working pressure of Single Stage Double Suction Centrifugal Pump: system pressure≤2.5MPa.
(System pressure=inlet pressure + working pressure≤2.5MPa)
3. Medium temperature of Single Stage Double Suction Centrifugal Pump: <105°C.
4. Ambient temperature of Single Stage Double Suction Centrifugal Pump: lower than 40 °C, comparably humidity should less than 95%.
5. Material of Single Stage Double Suction Centrifugal Pump is main cast iron and medium should be non-corrosive.
(Solid particle: <80mg/l)
Note: In the situation of big solid or strong corrosion medium, please advice with order, in convenience to supply you more creditable pump.




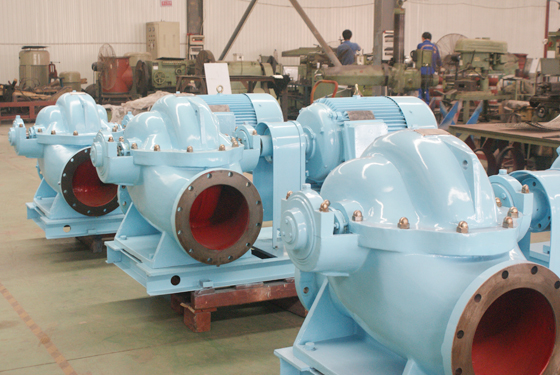

Structure of Double Suction Split Case Centrifugal Pump

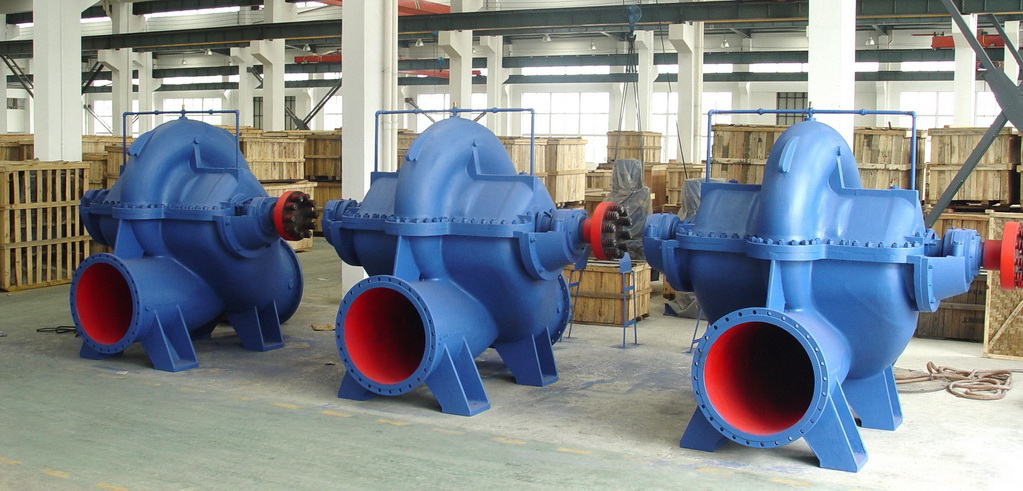

1. Both inlet and outlet of this Single Stage Double Suction Centrifugal Pump are placed under the axial line, the Single Stage Double Suction Centrifugal Pump casing is opened in the middle so it is unnecessary to remove the water inlet and outlet pipelines and motor if repaired. The pump moves CW viewing from the motor side. The pump moving CCW can also be made.
2. Both double suction pump casing and cover form the working chamber of the impeller and there are threaded holes for mounting vacuum and pressure meters on the flanges ant both inlet and outlet have water draining plug on the lower side of flange.
3. The impeller of Single Stage Double Suction Centrifugal Pump is static-balance and dynamic balance tested, fixed by the side nuts and the shaft sleeve nuts and its axial position can be adjusted via the nuts and axial force will be get balanced by means of the symmetrical arrangement of its blades, there may be residual axial force which is borne by the bearing at the axial end.
4. This Single Stage Double Suction Centrifugal Pump shaft is supported by two centripetal ball bearings, which are mounted inside of the bearing chamber on both ends of the pump and lubricated with grease. The double suction seal ring is used to reduce the leakage.

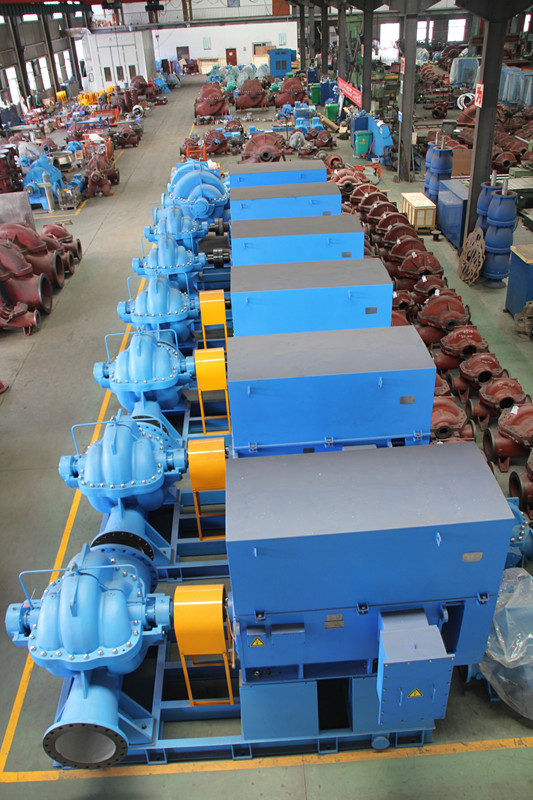

5. This Single Stage Double Suction Centrifugal Pump is driven directly via flexible coupling. (V-belt driving will be available if required).
6. The shaft seal of double suction pump is mechanical seal or packing seal.




Technical Data of Double Suction Split Case Centrifugal Pump
Capacity: ≤20000 m3/h
Head: ≤230m
Outlet size: ≤1400mm
Speed: 2900/1450/980/740/580rpm
             3500/1750/1180/890/710rpm
